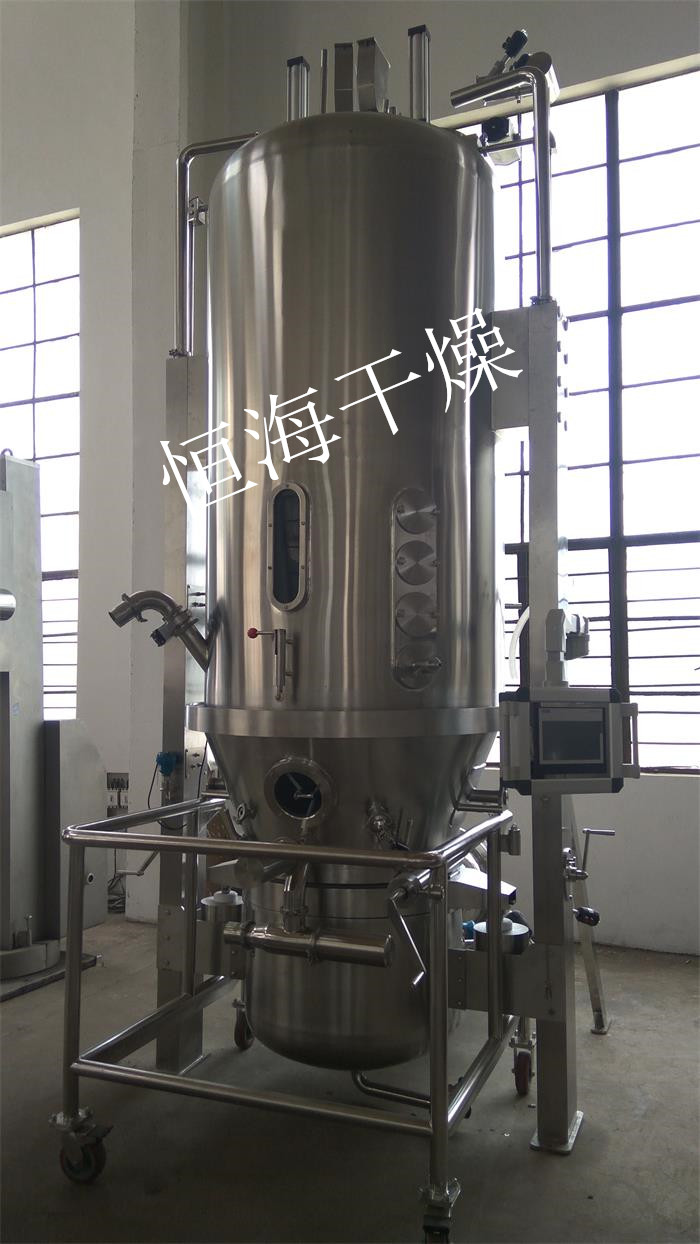

LDP-B流化床包衣機
概述 Description
流化床包衣機是將流態化包衣技術與噴霧技術有機結合為一體的新型微粒包衣設備，廣泛用于膜緩控釋、骨架緩控釋膠囊、丸劑包衣、顆粒、粉體包衣。
Fluid-bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is wide used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.
----------------------------------------------------------------------------------------------------------------
設備特點 Features of equipment
◎ 底噴流態化，物料具備嚴格的運行軌跡，因而可獲得均勻、連續的衣膜。
◎ 粉體顆粒、丸掩味、防潮、防氧化、防水、防熱、著色隔離等包衣。
◎ 無包衣材料損失、生產成本低。
◎ 霧粒到達物料線路短，無“噴霧干燥”之患。
◎ 圓柱形加速容器或倒錐體減速設計，可行微粒、大粒、小粒、微丸包衣。
◎ 物料分散性極好，無粘連現象。
◎ Coating of bottom spraying, material flow in order. We can get uniform and continuous film.
◎ Taste masking, odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating.
◎ Low productive cost, and the coating material is used perfect.
◎ Short travel distance of fog granule and without the problem of "spray drying".
◎ The design of cylinder for accelerator or cone for decelerate can Coating of granule, big granule and pellets.
◎ The high separate, without adhere.
----------------------------------------------------------------------------------------------------------------
技術參數 Technical parameters
項目Item / 規格Specification |
3 |
5 |
15 |
30 |
60 |
90 |
120 |
200 |
300-1000 | ||
投料量Capacity |
Kg/批kg/batch |
3 |
5 |
10-20 |
25-40 |
40-80 |
50-90 |
80-120 |
150-200 |
按用戶要求設計 |
|
原料容器容量Container voiume |
L |
12 |
22 |
50 |
100 |
220 |
300 |
420 |
650 |
||
風機功率Power of fan |
Kw |
4 |
4 |
7.5 |
7.5 |
15 |
18.5 |
18.5 |
22 |
||
噪音Noise |
db |
風機隔離處理噪音小于75分貝 No more than 75db Separated of fan |
|||||||||
壓縮空氣 Compressed air |
壓強Pressure |
Mpa |
0.6 |
||||||||
耗量Consumption |
M3/min |
0.4 |
0.4 |
0.6 |
0.9 |
1.3 |
1.3 |
1.1 |
1.1 |
||
蒸汽 Steam |
壓強Pressure |
Mpa |
0.4-0.6 |
||||||||
耗量Consumption |
Kg/h |
|
|
64 |
85 |
181 |
210 |
250 |
330 |
||
電加熱功率Power of electrical heater |
Kw |
9kw |
6kw |
按用戶要求設計By client |
|||||||

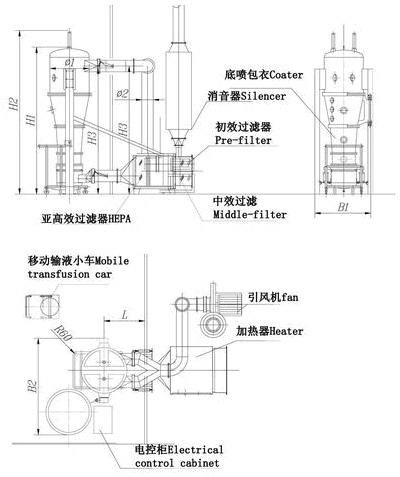

主機尺寸 Size of installation for reference |
H1(mm) |
|
|
2870 |
3150 |
3250 |
3400 |
3630 |
3890 |
||
H2(mm) |
2600 |
2600 |
3230 |
3620 |
3720 |
3870 |
4100 |
4360 |
|||
H3(mm) |
2410 |
2410 |
2545 |
2930 |
3020 |
3160 |
3390 |
3600 |
|||
B1(mm) |
770 |
960 |
1169 |
1460 |
1660 |
1760 |
2060 |
2260 |
|||
B2(mm) |
1170 |
1510 |
1860 |
2460 |
2860 |
1960 |
3660 |
4060 |
|||
L(mm) |
850 |
1000 |
1550 |
1700 |
1800 |
1800 |
2000 |
2100 |
|||
￠1 |
400 |
550 |
700 |
1000 |
1200 |
1300 |
1600 |
1800 |
|||
￠2 |
180 |
180 |
250 |
250 |
280 |
280 |
280 |
315 |
|||
所有尺寸僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
